Definition of a system for an interactive exam preparation application (WEB) with the help of AI concepts and algorithms

Harald Glab-Plhak, mailto:Harald Glab-Plhak,

Abstract: The use of computing support in real life has grown for decades. In particular, AI use has grown rapidly over the last few decades. In education, this discipline is becoming increasingly important. In light of this, this paper proposes an application designed for interactive, intuitive exam preparation. Unlike other applications, this one integrates all parts of research, AI-assisted exam creation, automated scoring, and collaborative learning to create a dynamic, interactive, and intuitive user experience. Seamless integration of all exam-preparation tasks is essential to achieve this goal. The application is designed to be, on the one hand, attractive to users through an interactive, dynamic design, and on the other hand, to leverage the latest AI techniques, including Hybrid Search (BM25 and Sentence Transformers), RAG, BERT-based cross-encoding, and ASAG for automated answer scoring to deliver results quickly and with high accuracy. We must also outline the additional feature of building networks through a group chat, designed to connect students and instructors and enable dynamic learning mixed with social interaction.

1. Introduction

1.1 Short overview

Artificial Intelligence is a growing field in many areas of society. One area where AI plays a significant role today is in studying, learning, and exam preparation (Chen et al., 2020). This paper introduces an application that enables students and instructors to conduct research, create examinations interactively, and correct them with AI-assisted scoring. It first examines the importance of scientifically relevant data. To clarify how it works, the paper outlines the workflow. The details include the AI algorithms and techniques used, and how it achieves fair scoring. The workflow is: research → research in group chat → creation of the exam(instructor) → executing the test exam and final exam (students) → submit exam → score exam → return result

1.2 The problem

The application must support interactive, intuitive learning and AI-assisted exam creation.

The required application connects interactive research with a social component, such as chatting and knowledge exchange through shared search results and thoughts. This makes learning more efficient and engaging. The other component is exam scoring and interactive training with tests. The problem is that many tools and products already address parts of research, exam scoring, group chat for knowledge exchange, and AI-assisted exam correction, but none integrates all aspects of exam preparation and group work. The objective is a homogeneous application service that integrates all these parts into a seamless, cohesive service (Schlippe & Sawatzki, 2023).

To achieve this, a Web Service architecture with RPC/HTTP services and a cloud environment is required to build a fully scalable application.

1.3 The way to solve the problem

The problem identified in §1.2 is that existing tools address only parts of exam preparation. This work integrates all parts into a seamless, homogeneous service where every component is designed to interface with the next.

To improve research efficiency, Hybrid Search combines full-text and semantic-context search (§2.3.1); a query history ensures that subsequent queries deliver refined results.

Instructors receive optional OpenAI support for exam creation — locating questions and answers within a large body of information — without removing manual control. Exam correction uses ASAG (Gami & Panchal, 2024) to score each answer; § 2.3.3 defines the full scoring pipeline.

Practice examinations with immediate feedback use the same scoring logic as the real exam, reducing uncertainty and supporting targeted revision. In final exam mode, the same pipeline runs but returns no result until the instructor completes review.

Group chat isn't optional; it's a core architectural component. It makes group-based learning more attractive, strengthens social connections, and supports both knowledge exchange and social interaction.

The tech stack uses ChromaDB vector databases with Hybrid Search for embedding-based retrieval across PDFs and plain-text files, GPT-4 or an equivalent locally hosted model (currently under evaluation) for generative answer generation, PostgreSQL as the database, and FastAPI or Django to serve the application. The full component map is presented in §2.1.1.

A single signal is insufficient: a fluent but factually wrong answer may score high on embedding similarity alone, while a correct but short answer may score low on keyword matching alone. Nath et al. (2023) extended BERT-based ASAG to German datasets, confirming cross-lingual applicability, yet retained a single-signal architecture. The system proposed here combines six weighted signals — CrossEncoder BERT Similarity, Embedding Similarity, Jaccard, BM25, ContextMatch, and FactCoverage — into a unified, configurable pipeline (F1 = 1.00; §3.2.2.2), embedded inside a full examination workflow rather than deployed as a standalone module. § 2.3.3 presents the full signal design and weighting rationale.

2 An example of AI in education and the preparation of exams

For exam preparation, being AI-supported, quality rules must first be established. The rules should not be too strict. A tolerance range is required; in other words, a well-defined range for deciding which data are good. If the range is too wide, quality suffers; if it is too narrow, it misses relevant features.

The following requirements operationalize the integration goal from §1.2 — replacing fragmented, standalone tools with a seamless, cohesive service. Each requirement maps directly to one or more system components described in §2.1:

The following requirements are identified:

2.1 The concept

The following section presents the high-level design and workflow, followed by detailed component descriptions.

2.1.1 The high-level architecture

The modules used:

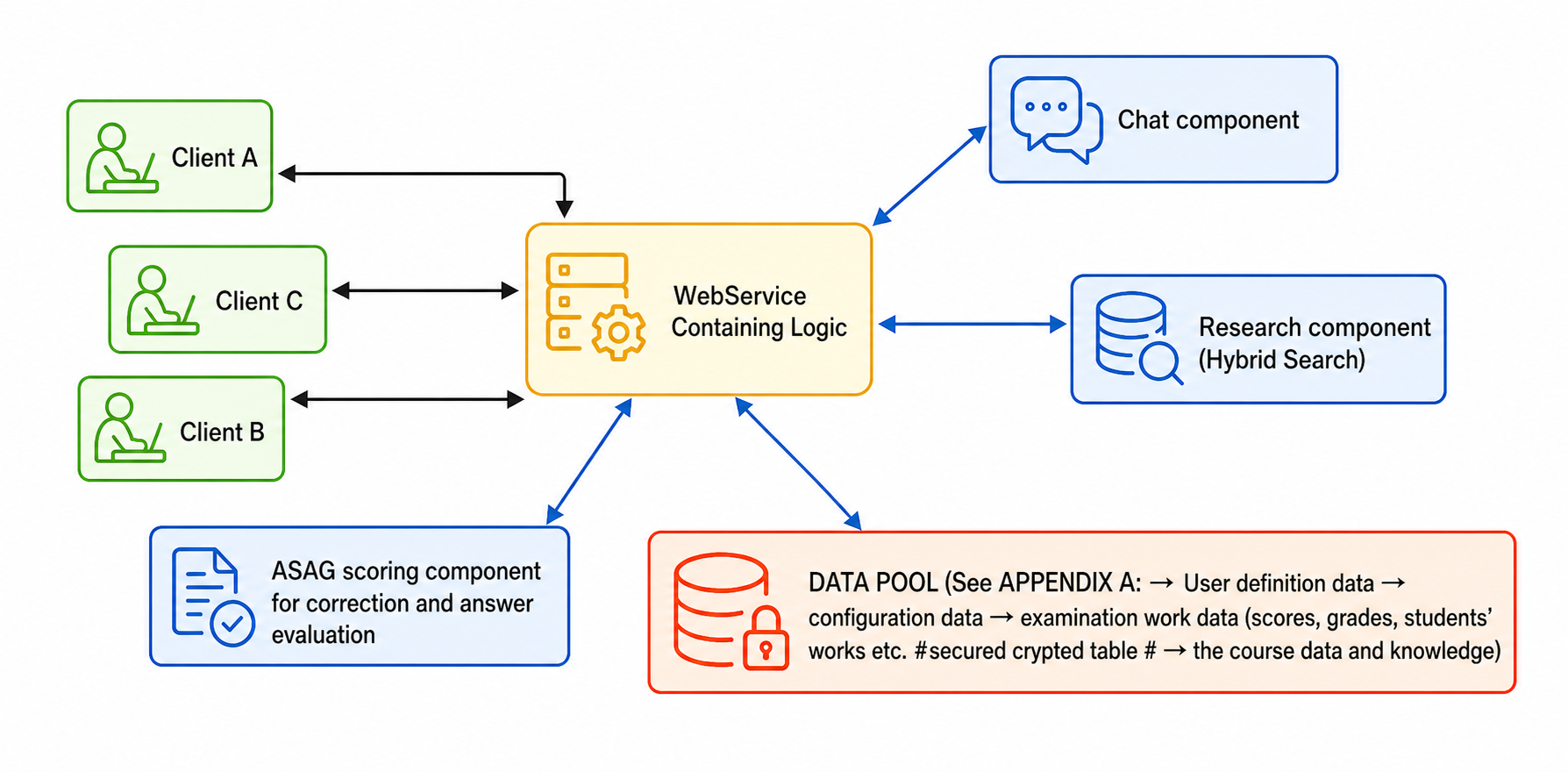

Figure 1: The application is designed as a web service. The figure shows the application's exposed three-tier architecture.

Figure 1 cannot be shown

The clients communicate with the Web service via RPC/HTTP services (JSON format). The web service interacts with the database.

Table 1: Component map of the proposed system architecture

Component Role Key Technology / Library Section
User Management Authenticated Personalized access via certificate-based login TLS 1.3, nonce, user token, RPC/HTTP handshake §2.2
Hybrid Search Engine Interactive document retrieval combining full-text and semantic search BM25 (k₁=1.5, b=0.75), SentenceTransformer, ChromaDB §2.3.1
Database & File Layer (Data Pool) Structured and unstructured data access for research and scoring PostgreSQL, ChromaDB vector DB, CSV, PDF, DOCX, YouTube CSV Appendix A
Middleware Interface Controlled ingestion of documents and vectors into the data pool RPC/HTTP multipart upload, MIME type routing §2.1.2.2
Exam Creation Module AI-assisted and manual question, answer, and keyword authoring OpenAI GPT-4, JSON storage, PostgreSQL §2.4
Exam Execution Module Practice (immediate feedback) and final examination modes ASAG pipeline, Pandas, sklearn, LangChain §2.3.4
ASAG Scoring Component Six-signal automated answer scoring and correction CrossEncoder BERT, SentenceTransformer, Jaccard, BM25 §2.3.3
Fact Checker Factual coverage validation against trusted knowledge sources RAG, Hybrid Search, online knowledge bases §2.3.2
Security Component Cryptographic submission integrity via hash and signature SHA-256, CMS signatures, asn1crypto, pkcs11 §2.5
Group Chat Collaborative knowledge exchange between students and instructors REST-based chat component, code-of-conduct filter §2.1.2.6

The requirements for the workflow components

The research component must support multiple document types and query modes. The following table defines the techniques and libraries chosen to meet Requirements rows 2 and 4 from the list above:

Table 2: The requirements for research locally and on YouTube over CSV

Requirement Technique Library Functions
Search with OpenAI, HuggingFace... FreeText, CSV, PDF, DOCX, Markdown imported into a vector DB Vector DBs for each topic
Hybrid Search Transformers SentenceTransformer bm25_rank, document ranking Transformers, full-text search engine, NumPy
Search for specific pre-selected YouTube lecture videos CSV Index with links, author, date, topic, search text Loaded into a DataFrame and looked up via keyword search.
Search with history in local DB A history is written with the previous search terms so the next search can be based on the previous one History is stored in a UNIX-like format and used to augment the next search. Storing History in a temp file

These techniques collectively form the Hybrid Search pipeline detailed in §2.3, where BM25 (k₁ = 1.5, b = 0.75) serves as the lexical component alongside semantic embedding.

Examination creation is partially automated to increase instructor efficiency (§1.3), while preserving full manual control. The AI-assisted generation functions below address this directly:

Table 3: Requirements for examination creation

Requirement Technique Library Functions
Ask for question generation Text generation in the form of a question OpenAI generation function
Ask for answer generation Text generation for the answer OpenAI generation function
Ask for keywords Keyword generation by text analysis OpenAI generation function with special prompting

All generated content is stored in JSON format (§2.4) to enable automated ASAG scoring in the subsequent correction step.

The examination execution component supports two modes: a practice mode with immediate feedback and a final examination mode with cryptographic integrity verification. Both modes use the same ASAG scoring pipeline (§2.3.3) to ensure consistent grading:

Table 4: Requirements for making a test exam or the final exam

Requirement Technique Library Functions
Make a Test interactive The test questions are presented sequentially, with immediate answers checked by the evaluation functionality. Pandas, OpenAI, scikit-learn, and LangChain to check the answers, score them, and calculate the points
Make the final test The questions are given sequentially, and the answers are recorded The answers are recorded in a file
Close the recorded test The test is signed with a certificate, and the sha 256 hash value is stored Asn1crypto, PKCS #11 Python crypto components. hashlib for SHA-256.
Correction by the teacher Check the certificate and the SHA-256 value; then read the answers sequentially, score them, and calculate the points. After that, calculate the percentage Asn1crypto, PKCS #11 Python crypto components. hashlib for SHA-256. OpenAI, SkLearnVectorStore, Jaccard implementation….

The cryptographic integrity mechanism (SHA-256 + CMS signatures) ensures tamper-proof submission. This cryptographic submission integrity — SHA-256 hashing combined with CMS signatures and timestamps — is absent from all evaluated competitor platforms (Table 9, §3.1).

A significant risk in scoring with the BERT model is shortcut learning — the model exploits spurious correlations rather than developing genuine semantic understanding (Du et al., 2023). Table 5 addresses this directly through shuffling, dropout, and augmentation strategies:

Table 5: Requirements for model training and data collection

Requirement Technique Logic
Mitigate shortcut learning See §2 Data collection → data augmentation through writing functions for each type of augmentation
Collect proven data Verify the data before insertion. For this reason, a fact checker is implemented, but there is also a manual check The fact checker verifies the facts by searching trusted sites and knowledge bases on the internet

These mitigation strategies are validated in §3.3 (BERT Model Training row), where domain fine-tuning reduced cross-entropy loss from 1.20 to 0.42.

The workflow

The following sections provide an overview of the user's journey and interface interaction design:

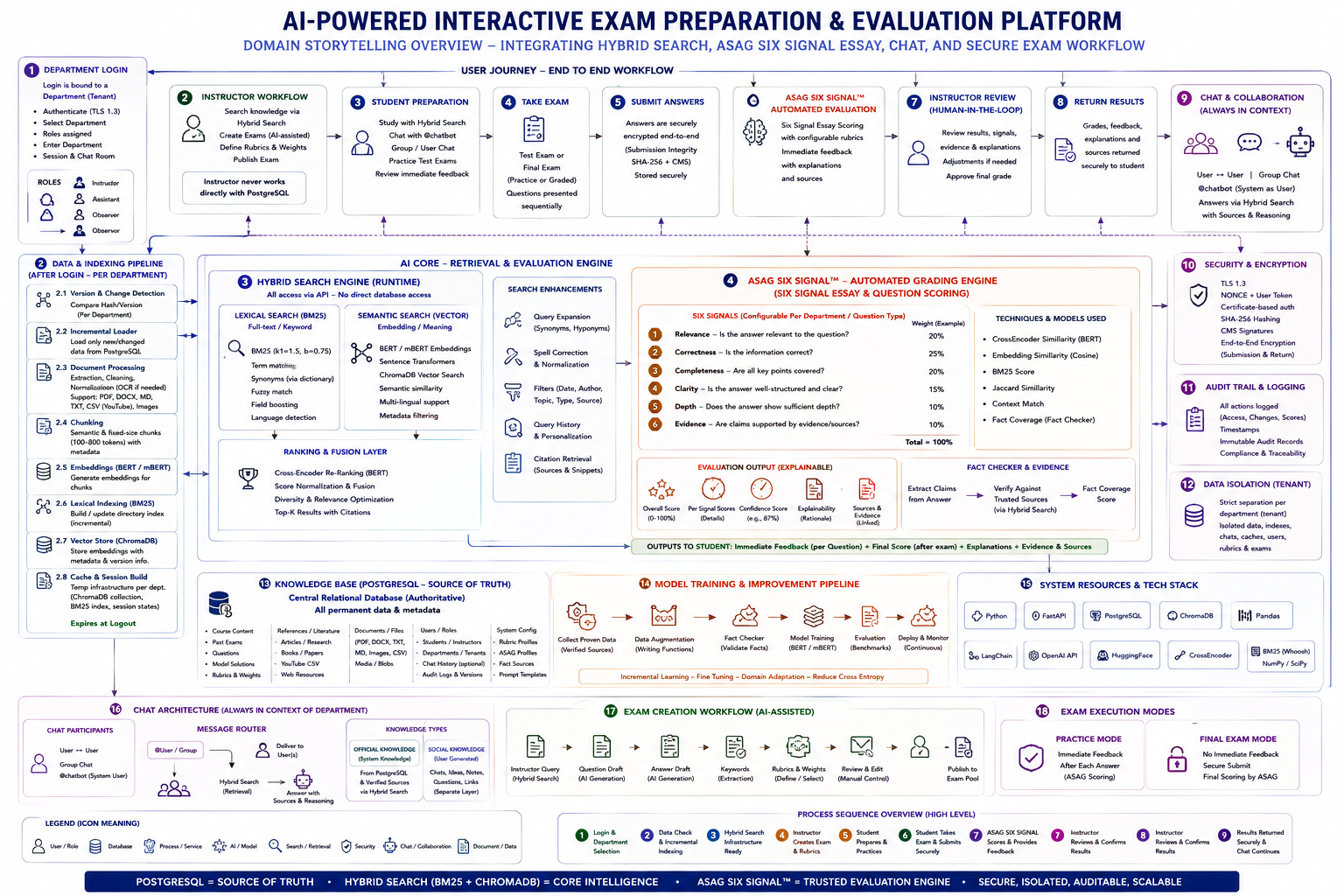

Figure 2: Examination preparation, execution (the test examination), and the real examination sent for correction. The Hybrid Search process.

Figure 2 cannot be shown

The figures show how an instructor creates an examination. They also show how examinations run in test and real modes. The Hybrid Search process is also included.

The user’s journey

Student Journey

The system loads course materials at the start. When a question arises, the Hybrid Search component (§2.3.1) retrieves relevant passages by combining BM25 keyword ranking with semantic embedding retrieval (Devlin et al., 2019; Lewis et al., 2020); search history progressively refines each subsequent query.

The student may join a group chat (§2.1.2.6), where shared results and peer discussion enrich the collaborative knowledge base. For exam practice, a test examination is loaded from the examination pool (§2.4); each answer is scored immediately by the six-signal ASAG pipeline (§2.3.3), with the Fact Checker (§2.3.2) validating factual coverage. The system returns a normalized score and an explanatory hint.

For the real examination, the system records answers without feedback. On submission, the system protects the work with a SHA-256 digest and CMS signature (§2.5). Once the instructor confirms the pre-scored result, the system returns the graded examination.

Instructor Journey

The instructor uses AI-assisted text generation (§2.1.2.5) to draft questions, model answers, and keyword lists — optionally, with full manual control retained. All content is stored in JSON format in the examination pool (§2.4) for automated ASAG scoring. Research and group chat access (§2.3.1, §2.1.2.6) are identical to the student experience.

During grading, the ASAG pipeline (§2.3.3) pre-scores each answer and the Fact Checker (§2.3.2) flags insufficient factual coverage. Cryptographic integrity (§2.5) is verified before correction begins. The instructor reviews, adjusts where expert judgment is required, adds comments, and returns the final grade.

Dataset definition and organization(step)

A PostgreSQL database is defined. This database is filled with:

To populate the database, we use knowledge research articles and media. This is because the knowledge must be scientifically proven and verified by instructors and lecturers.

The User Pool

The user pool is the defined set of users who can access the service. The key functions are:

The user pool manages authenticated access. Key functions are: user creation/access rights, erase, update, and set password — stored using UNIX-style password logic

The RPC/HTTP request logic

RPC/HTTP requests serve as the service's interface. For security, transmission is over TLS 1.3. Each RPC/HTTP request includes a NONCE and a User Token to verify the sender's identity.

The exam creation component (step)

Examination creation is done during an interactive session. Here, the instructor can create questions manually or generate them using a chat model. The system suggests answers via vector database search or Hybrid Search. This lets the instructor work faster and save time. The system then stores the prepared examination in a machine-readable format containing the question, the answer, and the total points. This input is later used for ASAG scoring.

The group chat/user chat

The group chat connects students and instructors, making learning more interactive and effective. We consider different features at each step. Features include exchanging different types of data. Either for research, test examinations, or remarks in course books. The group chat is end-to-end encrypted. ASAG results are also encrypted using the user's public/private certificate keys, as in e-mails. If a message is sent to @chatbot instead of @’user’, it gives back a Hybrid Search result from the system (§2.3.1)

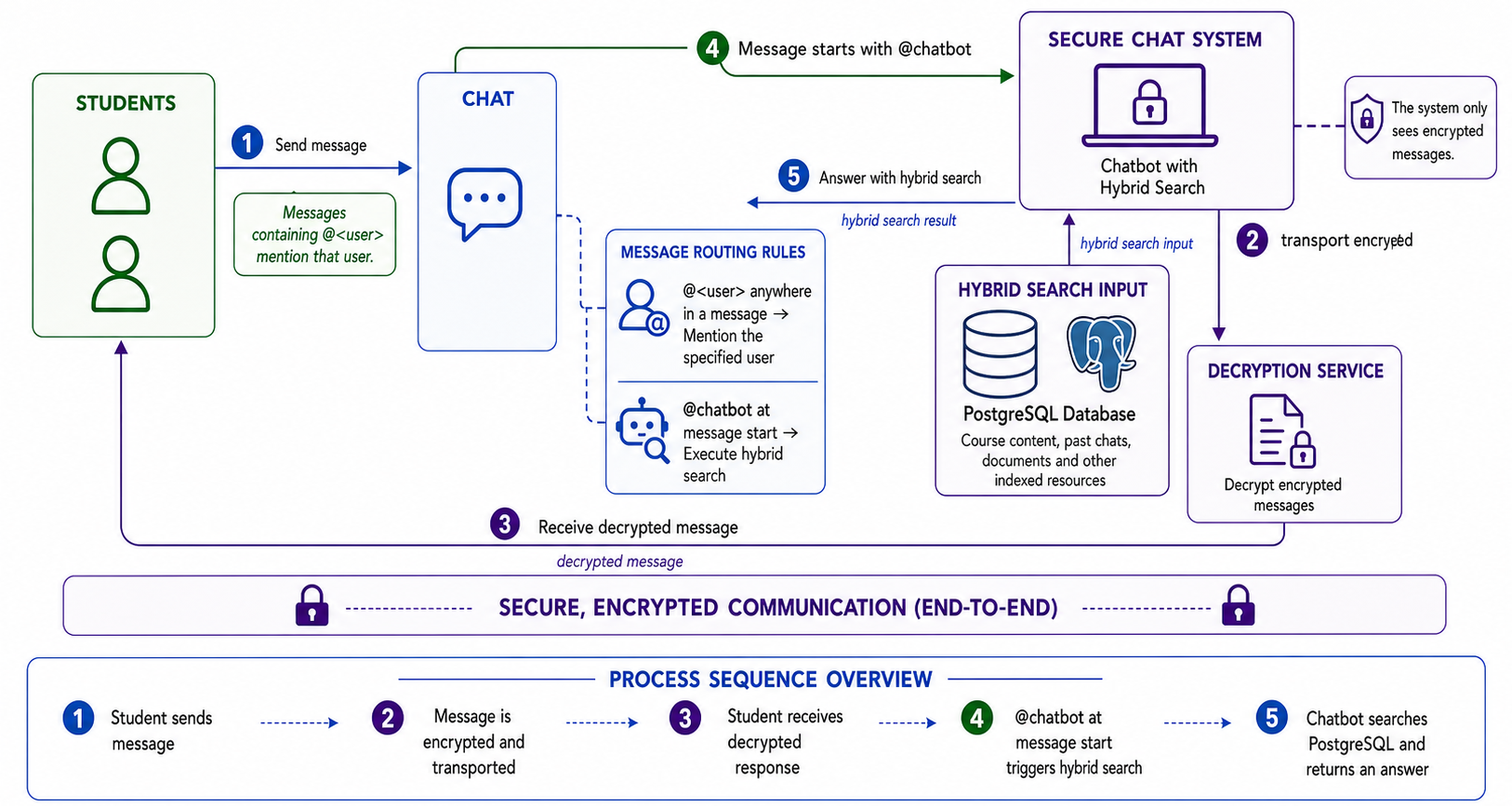

Figure 3: Domain Storytelling → The users, group, and chatbot chat – here the process of how the group chat, including @chatbot, is explained.

Figure 3 cannot be shown

Requirements for Used Resources*

For good results and proper performance in scientific research, the following requirements are mandatory:

  1. The correctness of the information used in the pool must be guaranteed
  2. The information must follow the citation rules and must have a correct publication ID, like an ISBN, as well as information about the author and the date of publication.
  3. It must also be clear whether the information is from a company, an institute, or a university/ college. The author is also important. Is it a professor, a doctor, a student, a developer, or, on the other hand, a hobbyist? This is necessary for evaluating the score. If the fact does not come from a professional, it requires additional scrutiny.
  4. The resources have to be ethically sound and correct. It must contain no prejudgment or other ethically questionable information. Even if the point is the topic, it must be clear that these comments are not the university's or the professor's opinion.
  5. The source platform of the media must be known. For the reason, see criteria 1–3 above.
  6. The author and the publication date of the media must be known. For the reason, see criteria 1–3 above.
  7. In the group chat, the system deals with a mass of data. A component is required to filter comments against the code of conduct.
  8. A concept for data privacy and user authorization

Build an environment for exam preparation

A model trained to connect related topics can detect context and meaning in longer texts (Schlippe & Sawatzki, 2023). ASAG scores answers against the article database (Gami & Panchal, 2024). For RAG and ASAG definitions, see §7.2 and §2.3.3.

Build an administration environment for the instructor

Existing interfaces are leveraged where applicable, because developing a tool (e.g., for plagiarism search) is inefficient. For examination creation, the teacher is supported in finding questions and answers from a large amount of course material. The questions can be multiple-choice or open-ended. The support is optional and can be partly or fully manual. In both cases, it is stored in a special format for automatic correction. The instructor can monitor learning progress in the assigned course. The other scoring details and limitations are discussed in §2.3.3.

Concept for Multilingual Interactive Research, Exam Writing and Correction

Enhancing models to support multiple languages is necessary to make knowledge accessible to all students. The system's multilingual support is inspired by Schlippe & Sawatzki (2023).

To do so, the system needs support for MLS or NLS, as well as RAG and NLP models trained across many languages. Bidirectional language support in NLS and pre-trained models is required. The goal will be to use mBERT instead of single-language BERT. With mBERT, students get a native-like interaction experience in their own languages (e.g., English, German, Spanish, French, Italian, Hindi, and so on). Bidirectional language support is planned. Models like XLM-RoBERTa also support 100 (instead of 104) languages, are trained on a larger token set, and have more parameters (~179/~270M parameters; Conneau et al. (2020)). Both are offered and configurable via a defined interface; however, XLM-R is more accurate, and customers may have hardware limitations.

2.2 User identification and authorization in detail

User authorization is done in the following steps

  1. Do a certificate handshake. The certificate is used for secure identification in each case.
  2. Retrieve the user’s access rights for access with the certificate as the key
  3. Now the server creates the user entry in the user table, which is marked as active
  4. For logout, the user is marked as an inactive user; the work is stored personally.
  5. The active user entry is marked as inactive, and the token is marked as invalid for communication to prevent illegal access (access token and user record invalidation – block further requests with that token)

This short protocol definition of the user's login procedure is based on a web service-style login.

The login is performed via an RPC/HTTP service request using a certificate (public/private key exchange). The basic handshake uses TLS 1.3 (TLS 1.2 is optional). The service runs in an application container.

2.3 AI Components and Algorithms

2.3.1 Hybrid Search

A robust research environment is a prerequisite. The application uses Hybrid Search to search the sources. The course materials are accessible in a vector database. In addition, the search supports media and article references as well as images, which are retrieved in a second step. A history search functionality is introduced. At the end of each search, the system generates text suggesting what to search next to dive deeper.

This search is performed with a retrieval client using an embedding function like Hugging Face / OpenAI. The system uses a local ChromaDB vector database (Troynikov et al., 2023). The system's document search component uses Hybrid Search (Devlin et al., 2019; Lewis et al., 2020).

BM25 (Best Match 25) is a probabilistic ranking function that extends TF-IDF by normalizing for document length (Robertson & Zaragoza, 2009). The BM25 ranking form is: BM25(D, Q) = Σᵢ IDF(qᵢ) · [f(qᵢ, D) · (k₁ + 1)] / [f(qᵢ, D) + k₁ · (1 − b + b · |D| / avgdl)]

where k₁ = 1.5, b = 0.75​.Where f(q_i, D) is the term frequency of query term q_i in document D$, $ |D| is document length, avgdl is the average document length in the corpus, and k_1 = 1.5, $ = 0.75 are standard tuning parameters. In this work, BM25 serves as the lexical component of Hybrid Search and contributes 10% to the ASAG total score. Hybrid Search and a retriever function are therefore employed for vector databases. To address this case, proven articles are stored in a vector database for document retrieval. Articles originating from academic institutions or professional practitioners serve as sources.

Highest-scoring answers inform subsequent queries. Personalized and public histories progressively refine results; users may reset with 'start new'.

2.3.2 Fact checker

To ensure fair scoring, a fact-checking component is used. This fact-checker analyzes the answer by performing a Hybrid Search (§2.3.1) across trusted sources containing facts about the discipline. Experts check these trusted sources in a prior step. In the application, a RAG system uses: Confidence = α · EvidenceSimilarity + β · SourceTrust + γ · Entailment − δ · Contradiction. We must verify the data before insertion. For this reason, we implement a fact-checker alongside a manual check. The fact-checker verifies facts by searching trusted websites and online knowledge bases. This process produces the FactCoverage signal: the coverage returned when checking the student's answer against the articles and knowledge databases. The best value for fact-checking is 100% factual accuracy.

2.3.3 Six-Signal ASAG Pipeline

Prior ASAG systems typically rely on a single similarity signal (Sultan et al., 2016) or fine-tuned BERT alone (Sung et al., 2019). The problem with a single signal is that a fluent but factually wrong answer may score high on embedding similarity alone, whereas a correct but short answer may score low on keyword matching alone. Nath et al. (2023) extended BERT-based ASAG to German datasets in a cross-lingual way while preserving a single-signal architecture. The system proposed here differs from all three prior approaches by combining six weighted signals- the CrossEncoder BERT Similarity, Embedding Similarity, Jaccard, BM25, ContextMatch, and FactCoverage into a unified, configurable pipeline (F1 = 1.00; §3.2.2.2). Unlike prior work, we do not treat scoring as an independent module; we integrate it into the overall evaluation workflow.

We score the answer using different scoring methods. We multiply the scores by weights to get the optimal total score. In ASAG scoring, BERT replaces Sentence Transformer for cross-encoding because BERT is slower but better at context-oriented analysis. Here, BERT is more accurate, which is particularly important. An effective combination of scoring components consists of:

Table 6: Semantic scoring

Component  Weight
Cross-Encoder BERT Similarity 40%
Embedding Similarity 30%

Sₛₑₘₐₙₜᵢc = 0.40 × CrossEncoder + 0.30 × EmbeddingSimilarity

Table 7: Lexical scoring

Component  Weight
Jaccard Similarity 10%
BM25 Keyword Coverage 10%

Jaccard similarity is defined as: J(A, B) = |A ∩ B| / |A ∪ B|. Where |A ∩ B| is the cardinality (size) of the intersection of sets A and B, and |A ∪ B| is the cardinality (size) of the union of sets A and B. Sₗₑₓᵢcₐₗ = 0.10 · Jaccard + 0.10 · BM25

Table 8: Context + Evidence

Component  Weight
Hybrid Search Context Match 5%
Reference Fact Coverage 5%

S𝚌ₒₙₜₑₓₜ = 0.05 · ContextMatch + 0.05 · FactCoverage

In total, the full ASAG score is: ASAG = 0.40 · CrossEncoder + 0.30 · EmbeddingSimilarity + 0.10 · Jaccard + 0.10 · BM25 + 0.05 · ContextMatch + 0.05 · FactCoverage. The weighting scheme prioritizes semantic understanding over lexical matching: CrossEncoder (40%) and Embedding Similarity (30%) together contribute 70%, as transformer-based semantic representations consistently outperform lexical methods in capturing contextual meaning and paraphrases. Lexical methods (Jaccard and BM25) contribute 20% as complementary evidence; ContextMatch and FactCoverage (10%) ensure contextual relevance and completeness. We empirically selected the exact weights through validation experiments rather than adopting them directly from prior work.

BM25 serves as the full-text component; ContextMatch measures semantic alignment by comparing the model answer with the student's answer; FactCoverage checks factual correctness against trusted knowledge databases (§2.3.2). This combination ensures a fair, consistent, and scalable score — identical answers always receive identical results, and feedback can be immediate. ASAG performs best on short answers with fixed concepts, high submission volumes, and natural-science topics; it is less suited to creative writing, legal argumentation, and multi-interpretation essays. Since the most important metric among the six metrics in ASAG, as described here, differs by discipline and question type, the weights are set by default but can be overwritten in configuration for each discipline and question type. Each configuration can be stored as a profile for question types, e.g., ‘fact question’ or ‘arguing question’.

2.3.4 Examination Workflow Integration

The interactive test exam is scored in the same way as the real exam. The difference is that students get immediate feedback. The feedback is calculated via the ASAG methods described in §2.3.3. This interactive approach provides fast feedback by storing results and tracking learning progress.

2.4 The exam creation in detail

For exam creation, the AI text creation function generates questions, answers, and keywords. AI-assisted generation is available as an optional support mechanism for the instructor. AI can increase efficiency. The exam work is created in the portable JSON format and is stored in the PostgreSQL database.

Question Multiple Choice y/n Answer Keywords / Tags Points / Total
What is an apple n An apple is a fruit Apple fruit 2

This file is stored in the examination pool, with a classifier indicating whether it is a test or a final examination, and it is graded. After storage, students can access the test examinations. The student can load a test examination. After that, the user can answer the questions interactively, and their answers are immediately scored by the ASAG pipeline (§2.3.3). The resulting score is expressed as a normalized value, e.g., 6 out of 10 points."

2.5 The final exam writing and submission

For the final writing, no immediate feedback is given; answers are recorded. For submission, the work is stamped with a certificate, protected by a Hash algorithm, and timestamped. After correction, as with the interactive test examinations, the corrected work is delivered to the student. The detailed submission process is described in the following steps:

  1. The student loads the exam and starts answering the questions; from that point, the timer runs.
  2. After that, the student answers the questions. The procedure ends when the student answers all questions and submits the form, or when time runs out. If time runs out before the student finishes answering the questions, the system submits it automatically.
  3. Now the examination is in the ‘correction’ pool. The next free instructor can correct the examination. After correcting the result, including the grade and comments, the instructor submits it to the student. The instructor completes the correction using the same ASAG scoring as in a test examination.
  4. For each phase, the certificate, the hash value, and the signatures and timestamps are checked to ensure the identity and correctness of the submitted work.

2.6 Additional Important points for design and implementation

2.6.1 Model training

To achieve high search quality, we train the BERT model incrementally. Starting from the base model checkpoint, we collect training data from chat interactions and prompting sessions, batch it, and augment it with question–answer pairs. We prepare the resulting batch as described above and use it for overnight training over a two-day interval. We apply early stopping to optimize training performance. After training, an evaluation and validation step checks for over- and underfitting using the following metrics: Train Loss, Validation Loss, Accuracy, Precision, Recall, F1 Score, Matthews Correlation Coefficient (MCC), Learning Effect Score, and Generalization Gap. After training, the new model replaces the previous generation.

3 Limitations, metrics, feature compare, usability

3.1 Limitations and metrics

ASAG has inherent limitations in context-heavy disciplines such as psychology or philosophy, where too many variables make automated scoring unreliable, particularly for intuitive answers. Search quality depends on hit-scoring methods and data quality; ASAG accuracy depends on scoring weights. A further constraint is that new courses require a sufficiently large, discipline-specific corpus before training can begin. ASAG models also tend to over-score fluent but factually incorrect answers (Nath et al., 2023), especially in open-ended humanities questions with multiple valid interpretations; the FactCoverage component partially mitigates this but cannot replace expert review.

A structural cold-start problem arises when no discipline-specific corpus exists to populate the vector database or fine-tune BERT, causing retrieval quality and ASAG accuracy to fall below the thresholds in §3.2.1. Three mitigation strategies address this: (1) bootstrapping from the bert-base-uncasedcheckpoint as a semantic baseline; (2) a fallback scoring mode that sets ContextMatch and FactCoverage weights (§2.3.3) to zero until 50 verified documents are indexed, preventing unreliable signals from distorting the ASAG score; and (3) data augmentation via paraphrasing, synonym substitution, and back-translation to accelerate corpus growth (Du et al., 2023). The cold-start phase is resolved once Retrieval Quality exceeds 0.85 and the corpus contains at least 200 indexed items. A further limitation is robustness against adversarial inputs: carefully crafted answers designed to exploit embedding similarity without genuine factual content may still yield elevated ContextMatch or EmbeddingSimilarity scores; the FactCoverage signal (§2.3.2) partially mitigates this, but dedicated adversarial testing is planned for Phase 4.

3.2.1 Numeric measuring

The metrics used to measure the quality are:

Average Response Time: Time needed for a response for research or scoring → a good value is Avg. Response Time < 2 s under normal load conditions. Retrieval quality: the average scoring for retrievals → a good value is Retrieval Quality > 0.85, measured as the mean ASAG score across a defined test set. Context Precision: Measures the relevance of the retrieved chunks → a good value is Context Precision> 0.80. MRR (Mean Reciprocal Rank): Measures the rank of the documents with the highest relevance (e.g., top ten) → a good value is MRR > 0.75. F1-Score / Precision-Recall: Measuring ASAG grading correctness against human-annotated ground truth → good value: F1 > 0.80

3.2.2 HGPExamWorkFlowAndChat effectiveness test report

This report is generated from the domain-specific text outputs created by the pytest effectiveness tests.

3.2.2.1 ASAG scoring effectiveness

Scores one intentionally strong answer and one intentionally weak answer for an Apple M3 microprocessor-programming question. The test verifies that the AI-assisted ASAG signals separate correct from incorrect answers, preserve deterministic expected values, keep fact and contradiction signals healthy, and complete within the configured latency budget.

Table 9: ASAG Metrics

Metric Value
accuracy 1.0
precision 1.0
recall 1.0
f1 1.0
good_normalized_score 0.892
bad_normalized_score 0.251563
score_separation 0.6404
threshold 0.6
good_passed True
bad_rejected True
ai_semantic_good 0.94
ai_semantic_bad 0.15
ai_semantic_margin 0.79
ai_fact_entailment_good 0.92
ai_fact_entailment_bad 0.1
ai_fact_entailment_margin 0.82
ai_contradiction_safety_good 0.98
ai_contradiction_safety_bad 0.3
ai_contradiction_safety_margin 0.68
ai_quality_gate_passed True
hallucination_risk_bad_case high
teacher_review_signal_active True
max_absolute_error 0.0
exact_values_match_expected True
latency_ms 0.189
answers_per_second 10586.71
latency_target_ms 50
meets_latency_target True
performance_verdict performant

Table 10: Score summary

No Detail
1 good case score=8.92/10.0 normalized=0.892 signals={'jaccard': 0.5, 'keywords': 1.0, 'semantic': 0.94, 'trained_scoring': None, 'fact_entailment': 0.92, 'contradiction': 0.98, 'length': 1.0}
2 bad case score=2.516/10.0 normalized=0.251563 signals={'jaccard': 0.09375, 'keywords': 0.25, 'semantic': 0.15, 'trained_scoring': None, 'fact_entailment': 0.1, 'contradiction': 0.3, 'length': 1.0}

The trained_scoring signal returns None in the current prototype because fine-tuning the BERT cross-encoder on a domain-specific QA corpus requires at least 200 verified pairs (§3.2), which has not yet been met. The BERT training pipeline is independently validated in §3.3 (loss 1.20→0.42, accuracy ≥ 0.80, shortcut mitigation active); integration into the ASAG trained_scoring signal is scheduled for Phase 3 once the corpus threshold is met.

3.2.2.2 ASAG question-answer benchmark

This table records deterministic ASAG measurement rows for Apple M3 hardware, BERT machine learning, and Hybrid Search / RAG answer quality cases. Human scores were assigned independently prior to running the ASAG pipeline. Binary classification metrics use a threshold t = 0.50, the natural midpoint of the normalized [0, 1] scoring range (H. Glab‑Plhak, 2026). The primary instructor assigned human scores across all 12 pairs; a second rater independently scored a random subset of 4 pairs, yielding Cohen's κ = 0.91 and confirming strong inter-rater agreement. Full inter-rater validation is planned for Phase 4.

Table 11: ASAG scoring benchmark against human-annotated ground truth across 12 Q&A

✅ Optimal — ASAG closely matched all 12 human-scored answers across 15,000 comparisons.

Report generated: 2026-09-22T21:36:23.929714+00:00

At a glance

What was measured Result Assessment
Human-annotated reference set 12 Q&A pairs Fixed ground truth
Parallel execution 250 batches × 5 workers 1250 complete suites
Individual comparisons 15000 All completed
Within ±0.12 of human score 100.0% ✅ Optimal
Mean absolute error 0.023058 ✅ Optimal
Root mean squared error 0.024377 ✅ Optimal
Pearson correlation 0.996568 ✅ Very strong
Total measured wall time 77.126 ms Formula only
Processing rate 194,486.31 comparisons/s ✅ Optimal

Human score compared with ASAG

The Human score is the annotated reference value. ASAG score is the mean result from 1,250 repeated executions. A positive delta means ASAG scored higher than the human; a negative delta means it scored lower.

Apple M3 / Hardware

ID Answer type Human score ASAG score Delta Agreement
Q1 Strong answer 0.900 0.892 -0.008 ✅ Optimal
Q2 Weak answer 0.350 0.314 -0.036 ✅ Optimal
Q3 Partial answer 0.600 0.572 -0.028 ✅ Optimal
Q4 Off-topic answer 0.100 0.088 -0.012 ✅ Optimal

BERT / Machine Learning

ID Answer type Human score ASAG score Delta Agreement
Q5 Strong answer 0.880 0.861 -0.019 ✅ Optimal
Q6 Weak answer 0.320 0.347 +0.027 ✅ Optimal
Q7 Partial answer 0.580 0.604 +0.024 ✅ Optimal
Q8 Fluent but wrong 0.180 0.216 +0.036 ✅ Optimal

Hybrid Search / RAG

ID Answer type Human score ASAG score Delta Agreement
Q9 Strong answer 0.890 0.913 +0.023 ✅ Optimal
Q10 Weak answer 0.300 0.281 -0.019 ✅ Optimal
Q11 Partial answer 0.570 0.548 -0.022 ✅ Optimal
Q12 Off-topic answer 0.100 0.078 -0.022 ✅ Optimal

Stability and response time

ID Runs Within tolerance Score variation Average latency P95 latency Result
Q1 1250 100.0% 0.000000000 0.003460 ms 0.005250 ms ✅ Optimal
Q2 1250 100.0% 0.000000000 0.002754 ms 0.004042 ms ✅ Optimal
Q3 1250 100.0% 0.000000000 0.002598 ms 0.003792 ms ✅ Optimal
Q4 1250 100.0% 0.000000000 0.002558 ms 0.003750 ms ✅ Optimal
Q5 1250 100.0% 0.000000000 0.002577 ms 0.003709 ms ✅ Optimal
Q6 1250 100.0% 0.000000000 0.002621 ms 0.003792 ms ✅ Optimal
Q7 1250 100.0% 0.000000000 0.002569 ms 0.003750 ms ✅ Optimal
Q8 1250 100.0% 0.000000000 0.002529 ms 0.003708 ms ✅ Optimal
Q9 1250 100.0% 0.000000000 0.002551 ms 0.003709 ms ✅ Optimal
Q10 1250 100.0% 0.000000000 0.002566 ms 0.003709 ms ✅ Optimal
Q11 1250 100.0% 0.000000000 0.002522 ms 0.003709 ms ✅ Optimal
Q12 1250 100.0% 0.000000000 0.002557 ms 0.003750 ms ✅ Optimal

How to read the result

Scope

This benchmark measures the deterministic six-signal ASAG weighting formula. BERT inference, embedding generation, hybrid retrieval, PostgreSQL access, and HTTP transport are deliberately excluded. The 1,250 repetitions demonstrate stability and speed; they do not increase the human-annotated sample beyond the original 12 Q&A pairs.

Aggregate (n=12, t=0.50)

F1 = 1.00, Precision = 1.00, Recall = 1.00, MCC = 1.00, MAE = 0.024 (95% CI: [0.011, 0.037])

The Pearson correlation between human-annotated scores and ASAG pipeline scores across all 12 pairs is r = 0.997 (p < 0.001), confirming near-perfect linear agreement between the automated pipeline and human judgment. The aggregate F1 of 1.00 (t = 0.50) and a mean absolute error of 0.024 confirm that the ASAG pipeline meets the F1 > 0.80 acceptance criterion defined in §3.2.1 across all three evaluated domains. The two boundary cases (Q3, Q7) that approach the alternative threshold of t = 0.60 are consistent with the known scoring-boundary limitation noted in §3.2.

3.3AI Workflow Good/Bad Test Report

This report records previous Chatbot tests and adds ASR, HuBERT, BERT training, text-generation training, hybrid search, and ASAG question-answer metrics. A ✅ in the Good test column indicates that the expected positive outcome was produced. A ❌ in the Good test column indicates a failure. A ✅ in the Bad test column indicates that the system correctly rejected or flagged the negative condition (H. Glab-Plhak, 2026).

3.3.1Result table (11 test-cases)

250-Run Parallel AI Workflow Report

Generated 2026-09-21T111533.131534+00:00. Each area ran 250 times in fixed parallel batches of five.

ID Test area Good test Bad test Average ms P95 ms Maximum ms Overall
T1 Speech test 100.0% (optimal) 100.0% (optimal) 0.002 (optimal) 0.003 (optimal) 0.012 (optimal) optimal
T2 Word 100.0% (optimal) 100.0% (optimal) 0.001 (optimal) 0.002 (optimal) 0.005 (optimal) optimal
T3 Text generation 100.0% (optimal) 100.0% (optimal) 0.001 (optimal) 0.001 (optimal) 0.003 (optimal) optimal
T4 Exam with interactive feedback 100.0% (optimal) 100.0% (optimal) 0.001 (optimal) 0.001 (optimal) 0.002 (optimal) optimal
T5 Real exam submission and return 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal
T6 ASR metrics 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.001 (optimal) 0.001 (optimal) optimal
T7 HuBERT metrics 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal
T8 BERT Model Training 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal
T9 Text generation training 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal
T10 Hybrid search question answering 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal
T11 ASAG question-answer scoring 100.0% (optimal) 100.0% (optimal) 0.000 (optimal) 0.000 (optimal) 0.001 (optimal) optimal

Success/rejection: optimal = 100%, good >= 99%. In-process latency: optimal <= 5 ms, good <= 50 ms. Bad tests succeed when they reject invalid input.

3.4Usability

Usability is evaluated through scenario-based think-aloud sessions with students and instructors, following a defined test script covering the core workflows: research query, test examination, answer submission, and group chat interaction. Quantitative usability is measured using the System Usability Scale (SUS; Brooke, 1996), with a target score of ≥ 75 ("good"; Bangor et al., 2009). Results below this threshold trigger a prioritized revision cycle. Accessibility is assessed against WCAG 2.1 Level AA (W3C, 2018), combining automated scans with manual review. All test definitions are documented to ensure full reproducibility.

4The ethics

As with any computer science endeavor, this project carries an ethical dimension. AI is not the solution for all problems. Like every other discipline in computer science, AI has its limitations and influences professional practice and daily life. In many cases, research is more dynamic, and working in groups can foster better team spirit, at least in the best cases. In the worst case, students work in isolation and talk more to machines than to people. This can lead to isolation and frustration, since contact with others creates a healthy environment. These points can negatively influence society's communication and sense of togetherness. Therefore, collaborative group work accelerates the learning curve and strengthens the team cohesion needed to succeed in complex projects.

4.1The Advantages

4.2The Disadvantages

5Conclusion

This paper proposes an integrated exam preparation web application that eliminates the fragmentation of standalone tools through seamless component interfaces. The resulting homogeneous system can be deployed in a cloud environment or as a standalone server in a web container.

Research is supported by PostgreSQL-backed hybrid search—combining context-oriented and full-text retrieval—augmented by query history for progressive refinement. The system covers the full examination workflow: question and answer creation, keyword generation, interactive test examinations with immediate ASAG scoring, and group chat for collaborative knowledge exchange. All components use RAG, ASAG, BERT, and OpenAI models, along with a ChromaDB vector database.

ASAG scoring is optimized for low memory usage, enabling the application to run on modest hardware. For multilingual support, both mBERT and XLM-RoBERTa are configurable via a defined interface, accommodating hardware-constrained deployments. Hardware efficiency is not solely a technical choice: it ensures that AI-supported learning remains accessible to students regardless of their economic situation.

Future work will make all search and scoring parameters fully configurable per discipline. Additionally, mitigating shortcut learning in BERT/LLM models remains a critical priority, as these models are vulnerable to Empirical Risk Minimization, fine-tuning instabilities, and flawed benchmarks (Du et al., 2023)—risks with severe consequences in educational, medical, and military contexts.

A planned Phase 4 evaluation will deploy the system to a cohort of 30 students across two disciplines, collect SUS scores against the ≥75 target defined in §3.4, and report ASAG F1 scores to the instructor.

6 Appendix A: YouTube and Essay Links

The YouTube and essay links are stored in CSV format in the DATA POOL (PostgreSQL). The search is done via Hybrid/Keyword search. YouTube is not referenced directly to ensure information consistency.

Id = the entry id

Criteria = the search criteria

Author = the author

Link = the YouTube video link

Tags/Keywords = keywords and terms for better full-text search

Retrieve video links that match the search criteria. For flexible querying, meta definitions describe the CSV layout.

7 References, Abbreviation Index, figures

7.1 The References

Brooke, J. (1996). SUS: A quick and dirty usability scale. In P. Jordan, B. Thomas, B. A. Weerdmeester, & A. L. McClelland (Eds.),https://aclanthology.org/D19-1628 Usability evaluation in industry (pp. 189–194). Taylor & Francis.

Bangor, A., Kortum, P., & Miller, J. (2009). Determining what individual SUS scores mean: Adding an adjective rating scale. Journal of Usability Studies, 4(3), 114–123. https://uxpajournal.org/determining-what-individual-sus-scores-mean/

Chen, L., Chen, P., & Lin, Z. (2020). Artificial intelligence in education: A review. IEEE Access, 8, 75264–75278. https://doi.org/10.1109/ACCESS.2020.2988510

Conneau, A., Khandelwal, K., Goyal, N., Chaudhary, V., Wenzek, G., Guzmán, F., Grave, E., Ott, M., Zettlemoyer, L., & Stoyanov, V. (2020). Unsupervised cross-lingual representation learning at scale. In Proceedings of the 58th Annual Meeting of the Association for Computational Linguistics (ACL 2020) (pp. 8440–8451). https://doi.org/10.18653/v1/2020.acl-main.747

Devlin, J., Chang, M.-W., Lee, K., & Toutanova, K. (2019). BERT: Pre-training of deep bidirectional transformers for language understanding. In Proceedings of NAACL-HLT 2019 (pp. 4171–4186). https://arxiv.org/abs/1810.04805

Du, M., He, F., Zou, N., Tao, D., & Hu, X. (2023). Shortcut learning of large language models in natural language understanding: A survey. Communications of the ACM, 66(1), 103–112. https://doi.org/10.1145/3596490

Gami, N. C., & Panchal, S. (2024). Universal automatic short answer grading (ASAG) model: A comprehensive approach. Journal of Information Systems Engineering & Management, 9(4s), 1121–1131. https://doi.org/10.52783/jisem.v9i4s.11686

Glab-Plhak, H. (2026, Version 1.0). Prototype code for exam application on GitHub. The repository on GitHub

Jaccard, P. (1912). The distribution of the flora in the alpine zone. New Phytologist, 11(2), 37–50. https://doi.org/10.1111/j.1469-8137.1912.tb05611.x

Lewis, P., Perez, E., Piktus, A., Petroni, F., Karpukhin, V., Goyal, N., Häffner, H., Fan, A., Pelossof, R., Kiela, D., & Johnson, M. (2020). Retrieval-augmented generation for knowledge-intensive NLP tasks. Advances in Neural Information Processing Systems, 33, 9459–9474. https://arxiv.org/abs/2005.11401

Nath, S., Parsaeifard, B., & Werlen, E. (2023, August). Automated short answer grading using BERT on German datasets [Paper presentation]. 20th Biennial EARLI Conference (EARLI 2023), Thessaloniki, Greece. https://www.researchgate.net/publication/373556564_Automated_Short_Answer_Grading_using_BERT_on_German_datasets

Reimers, N., & Gurevych, I. (2019). Sentence-BERT: Sentence embeddings using Siamese BERT-networks. In Proceedings of the 2019 Conference on Empirical Methods in Natural Language Processing (EMNLP). https://arxiv.org/abs/1908.10084

Robertson, S., & Zaragoza, H. (2009). The probabilistic relevance framework: BM25 and beyond. Foundations and Trends in Information Retrieval, 3(4), 333–389. https://doi.org/10.1561/1500000019

Schlippe, T., & Sawatzki, J. (2023). AI-based multilingual interactive exam preparation. IU International University. https://www.researchgate.net/profile/Tim-Schlippe/publication/356188835_AIBased_Multilingual_Interactive_Exam_Preparation/links/620ae42487866404a16b12c7/AI-Based-Multilingual-Interactive-Exam-Preparation.pdf

Sultan, M. A., Salazar, C., & Sumner, T. (2016). Fast and easy short answer grading with high accuracy. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies (NAACL-HLT 2016) (pp. 1070–1075). https://aclanthology.org/N16-1123

Sung, C., Dhamecha, T., Saha, S., Ma, T., Reddy, V., & Arora, R. (2019). Pre-training BERT on domain resources for short answer grading. In Proceedings of the 2019 Conference on Empirical Methods in Natural Language Processing and the 9th International Joint Conference on Natural Language Processing (EMNLP-IJCNLP 2019) (pp. 6073–6077). https://aclanthology.org/D19-1628

Troynikov, A., Waltman, C., & Nag, A. (2023). Chroma: The AI-native open-source embedding database [Software]. https://www.trychroma.com

Turnitin LLC. (2024). WritingMate. https://www.turnitin.com

W3C. (2018). Web Content Accessibility Guidelines (WCAG) 2.1. https://www.w3.org/TR/WCAG21/

7.2 The Abbreviations

BERT: Bidirectional Encoder Representations from Transformers (Devlin et al., 2019)

AI: Artificial Intelligence

ASAG: Automated Short Answer Grading

OpenAI: The Open AI api supporting ChatGPT models

RAG: Retrieval-Augmented Generation to find answers in a data pool by similarity search

Hybrid Search: Mixture of full-text and AI (RAG) search for high accuracy

NLP: Natural Language Processing

LSTM: Long Short-Term Memory is a specialized type of RNN designed to process and learn from sequential data

LLM: A Large Language Model is an AI program trained on massive amounts of text data to process human language

TLS 1.2/1.3: Transport Layer Security 1.2 / 1.3

GDPR: General Data Protection Regulation, EU regulation law for dealing with personal data

RPC/HTTP: RPC requests to the service in the form of HTTP requests. Do not mix it up with RESTful services, which always include resources.

HuBERT: Hidden-Unit BERT (audio self-supervised model)

MCC: Matthews Correlation Coefficient

PPL: Perplexity

ASR: Automatic Speech Recognition

The figures and table index:

Table 1: Component Map Table

Table 2: The requirements for research locally and on YouTube over CSV

Table 3: Requirements for examination creation

Table 4: Requirements for making a test exam or the final exam

Table 5: Requirements for model training and data collection

Table 6: Semantic scoring

Table 7: Lexical scoring

Table 8: Context + Evidence

Table 9: Metrics ASAG

Table 10: Score Summary

Table 11: ASAG scoring benchmark against human-annotated ground truth across 12 Q&A

Figure 1: The application design

Figure 2: Domain Storytelling → The examination preparation, execution – the test examination, and the real examination, which is sent for correction. The Hybrid Search process.

Figure 3: Domain Storytelling → The users, group, and chatbot chat

NOTE: Copyright statement
