Charts to express logic and their evolution
The way to express the logic of routines and procedures has changed over the decades. The reason is that the foundation of expressions and theories in developing programs/logics is scientific and mathematical. This explains why, at the beginning, ways to show logic were very close to how mathematical functions and expressions are defined. As programming paradigms changed and evolved, flowcharts and similar tools became insufficient. For this reason, ways of expressing logic have changed over time. The more complex the systems and paradigms, the more complex the description logic becomes. The goal is always to simplify these descriptions so each team member can understand them at the same level.

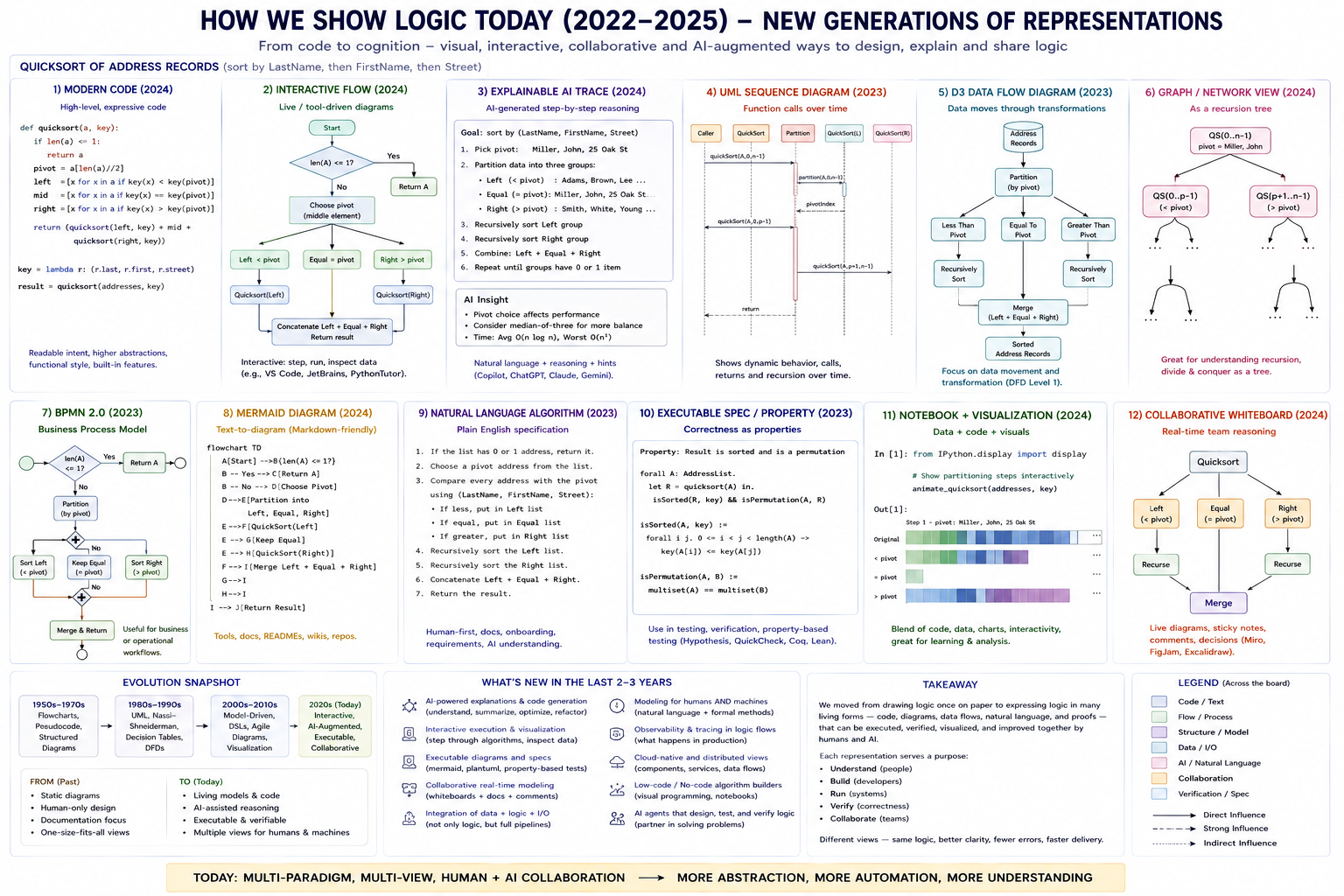

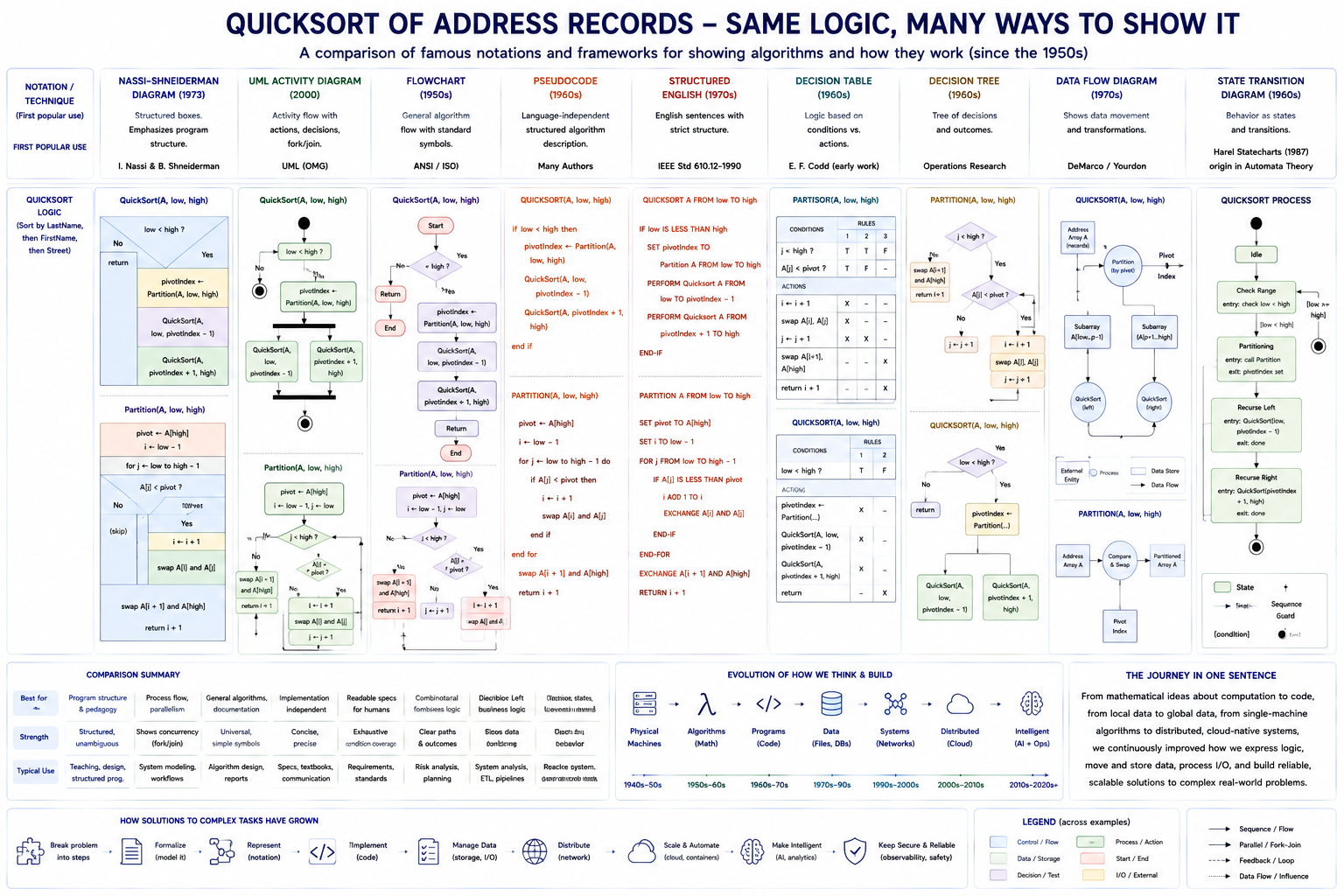

The history of charts to design and express logic
Now you may say, why should I learn these old things? It is just history. The point is that many applications and systems are described using these older ways of expressing logic. For that reason, a professional should be able at last to read these FlowCharts and PSEUDOCODE and all the other ways to express logic. Even nowadays, some applications are designed in that way; for example, assembler-written modules.
The ways to express logic in a timeline
Flowchart(1950s) - A flowchart is a way to show logic as a picture with the following figures:
Figures Table:Here is a table of figures and symbols used for a flowchart
| Symbol | Name | Meaning / Use |
|---|---|---|
| ⬭ | Terminator | Start or end of a program/process |
| ▭ | Process | An operation, calculation, assignment, or action |
| ◇ | Decision | Condition or question; branches typically into Yes/No or True/False |
| ▱ | Input/Output | Read input or produce/output data |
| → | Flow Line | Shows the direction of Control Flow |
| ○ | On-page connector | Connects two separated flow lines on the same page |
| ⬟ | Off-page connector | Flow continues on another page/diagram |
| ▭ with double vertical edges | Predefined process/Subroutine | Call to another procedure, function, or predefined process |
| ⬡ | Preparation | Initialization or preparation, e.g. i = 0 |
| D-shaped symbol | Delay | Waiting or delay in processing |
| Document shape (rectangle with wavy bottom) | Document | A document/report produced or consumed |
| Stacked documents | Multiple Documents | Several documents |
| Cylinder | Data sources (e.g.: Database(s)) | Persistent stored data, traditionally disk/database |
| Trapezoid | Manual Operation | An operation performed manually |
| Inverted Trapezoid | Manual input | Data entered manually, traditionally via keyboard |
| Hexagon-like display symbol | Display | Information shown on a display |
| Annotation/bracket | Comment/Annotation | Additional explanation associated with part of the flowchart |
A Simple program example
╭───────────╮
│ START │
╰─────┬─────╯
│
▼
╱─────────────╲
╱ Read X ╲ INPUT
╲ ╱
╲──────┬──────╱
│
▼
┌───────────┐
│ Y = X*2 │ PROCESS
└─────┬─────┘
│
▼
╱─────╲
╱ Y > 10╲ DECISION
╲ ╱
╲──┬──╱
Yes │ No
┌─────────┴─────────┐
▼ ▼
╱────────────╲ ╱────────────╲
╱ Print "big" ╲ ╱Print "small" ╲
╲ ╱ ╲ ╱
╲──────┬──────╱ ╲──────┬─────╱
│ │
└──────────┬──────────┘
▼
╭───────────╮
│ END │
╰───────────╯
An elaborated example
╭────────────────────╮
│ START │
╰─────────┬──────────╯
│
▼
⬡ PREPARATION
Initialize order system
attempts = 0
│
▼
╱────────────────────╲
╱ MANUAL INPUT ╲
│ Enter customer number │
╲──────────────────────╱
│
▼
▱ INPUT / OUTPUT
Read customer record
│
▼
◇ DECISION
Customer exists?
/ \
YES NO
│ │
│ ▼
│ ┌────────────────┐
│ │ PROCESS │
│ │ Create customer│
│ └───────┬────────┘
│ │
└───────┬───────┘
│
▼
║────────────────────║
║ PREDEFINED PROCESS ║
║ CalculatePrice() ║
║────────────────────║
│
▼
◇ DECISION
Payment required?
/ \
YES NO
│ │
▼ │
▱ INPUT / OUTPUT │
Request payment │
│ │
▼ │
D-SHAPE │
DELAY │
Wait for payment │
│ │
▼ │
◇ DECISION │
Payment received? │
/ \ │
YES NO │
│ │ │
│ ▼ │
│ ○ CONNECTOR A │
│ │ │
└────┬─────┘ │
│ │
└────────┬───────┘
│
▼
┌───────────┐
│ PROCESS │
│ Save order│
└─────┬─────┘
│
▼
CYLINDER
╭─────────────╮
│ DATABASE │
│ Store order │
╰──────┬──────╯
│
▼
DOCUMENT SYMBOL
┌─────────────┐
│ Invoice │
└~~~~~~~~~~~~~┘
│
▼
MULTIPLE DOCUMENTS
┌──────────────┐
┌──────────────┐~
│ Invoice │~~
│ Delivery note│~
└~~~~~~~~~~~~~~┘
│
▼
MANUAL OPERATION
╱───────────╲
│ Employee │
│ packs goods│
╲───────────╱
│
▼
DISPLAY SYMBOL
╭───────────────╮
/ "Order ready" │
╰─────────────────╯
│
├────────────── [ANNOTATION]
│ Order is now
│ ready to ship
▼
⬟ OFF-PAGE
CONNECTOR B
"Continue on page 2"
───────────── PAGE 2 ─────────────
⬟ CONNECTOR B
│
▼
┌──────────────┐
│ PROCESS │
│ Ship goods │
└──────┬───────┘
│
▼
○ CONNECTOR C
│
▼
╭──────────────╮
│ END │
╰──────────────╯
One historical detail is worth noting: flowchart symbol sets vary somewhat between standards and eras.* The rectangle, diamond, parallelogram, terminator, and arrows are extremely stable, while symbols such as display, manual input, preparation, delay, and particular storage symbols are less commonly used in modern software flowcharts.
PSEUDOCODE(1960s) - Independent code, like in a computer language, to show the logic
Keywords table of PSEUDOCODE
| Command/Keyword | Purpose | Example |
|---|---|---|
| BEGIN | Start of block/program | BEGIN |
| END | End of block/program | END |
| SET/← | Assignment | SET x ← 10 |
| INPUT/READ | READ input | READ name |
| OUTPUT/PRINT | Produce output | PRINT message |
| IF | Conditional Execution | IF x > 10 THEN |
| THEN | True branch | THEN... |
| ELSE | Alternative branch | ELSE... |
| ELSE IF | Next if case | ELSE IF x = 10 THEN |
| END IF | End of if expression | END IF |
| CASE/SWITCH | Multiple branch expression/select | CASE command OF |
| WHEN | Selection Alternative | WHEN 1: ... |
| END CASE | End selection | END CASE |
| WHILE | The pre-condition Loop | WHILE x < 10 DO |
| END WHILE | End pre-cond loop | END WHILE |
| REPEAT | The start post-condition loop | Cell 3 |
| UNTIL | The post-condition end | UNTIL x = 10 |
| FOR | Counter loop | FOR i ← 1 TO 10 DO |
| TO | Counter is ascending | 1 TO 10 |
| DOWNTO | Counter is descending | 10 DOWNTO 1 |
| STEP | Change increment/decrement step value/default 1/-1 | STEP 2/-2 |
| END FOR | End for loop | END FOR |
| FOR EACH | Iterate through list | FOR EACH item IN list |
| BREAK | leave loop immediate | BREAK |
| CONTINUE | Iterate immediate | CONTINUE |
| FUNCTION | Define Function | FUNCTION max(a,b) |
| PROCEDURE | Define Procedure | PROCEDURE printString(s) |
| CALL | Call Procudure | CALL printString() |
| RETURN | return a value | RETURN value |
| DECLARE | declare a variable | DECLARE x AS INTEGER |
| ARRAY | declare an array | DECLARE values AS ARRAY |
| GOTO | jump without condition | GOTO retry |
| LABEL | JUMP label | LABEL retry |
| AND | logical AND | 3 < x AND y= 9 |
| OR | logical OR | 3 > t OR z >= 100 |
| NOT | logical negation | NOT finished |
| TRUE, FALSE | True/False - boolean constants | finished ← FALSE |
Examples using PSEUDOCODE
- Sequence
BEGIN
READ x
SET y ← x * 2
PRINT y
END
- IF/THEN/ELSE
IF age >= 18 THEN
PRINT "adult"
ELSE
PRINT "minor"
END IF
- Here is a flowchart-like structure for comparison
◇
age >= 18?
/ \
TRUE FALSE
↓ ↓
PRINT "adult" PRINT "minor"
- WHILE
SET i ← 0
WHILE i < 10 DO
PRINT i
SET i ← i + 1
END WHILE
- REPEAT/UNTIL
REPEAT
PRINT "Enter system password:"
READ password
UNTIL password = correctPassword
- FOR
FOR i ← 1 TO 10 DO
PRINT i
END FOR
- SWITCH/CASE
CASE command OF
WHEN 1:
PRINT "Open"
WHEN 2:
PRINT "Save"
WHEN 3:
PRINT "Exit"
OTHERWISE:
PRINT "Unknown command"
END CASE
- Functions
The definition
FUNCTION maximum(a, b)
IF a > b THEN
RETURN a
ELSE
RETURN b
END IF
END FUNCTION
The invocation
largest ← maximum(x, y)
- Procedures
PROCEDURE printAddress(address)
PRINT address.name
PRINT address.street
PRINT address.city
END PROCEDURE
CALL printAddress(customerAddress)
- A tiny program
BEGIN
DECLARE numbers AS ARRAY
DECLARE searchValue AS INTEGER
DECLARE found AS BOOLEAN
READ numbers
READ searchValue
SET found ← FALSE
FOR EACH number IN numbers DO
IF number = searchValue THEN
SET found ← TRUE
BREAK
END IF
END FOR
IF found THEN
PRINT "Value found"
ELSE
PRINT "Value not found"
END IF
END
- A little minimalistic language core
BEGIN / END
READ
PRINT
SET
IF / THEN / ELSE / END IF
WHILE / DO / END WHILE
REPEAT / UNTIL
FOR / TO / STEP / END FOR
FUNCTION / PROCEDURE
CALL
RETURN
BREAK
CONTINUE
REMARK: With sequence + selection (IF) + iteration (WHILE), you already have the fundamental structured-programming control structures. FOR, CASE, REPEAT, etc. mainly make algorithms easier for humans to express and read.
Datatypes in PSEUDOCODE:
DATA TYPE DEFINITIONS
=====================
Primitive Data Types
--------------------
BOOLEAN
Logical value.
Values: TRUE, FALSE
CHARACTER
A single character.
Example: 'A'
STRING
A sequence of characters.
Example: "Hello World"
INTEGER
Whole signed number.
Examples: -100, 0, 42
NATURAL
Non-negative whole number.
Examples: 0, 1, 2, 100
REAL
Real / floating-point number.
Examples: 3.14, -0.25, 1.0
FLOAT
Single-precision floating-point number.
Example: 3.14159
DOUBLE
Double-precision floating-point number.
Example: 3.141592653589793
DECIMAL
Decimal number with defined decimal precision.
Often useful for financial calculations.
Example: 123.45
Special Data Types
------------------
VOID
Represents no value.
Typically used as the return type of procedures.
NULL
Represents the absence of a value.
ANY
Represents a value of any supported type.
Collection / Compound Data Types
--------------------------------
ARRAY OF <TYPE>
Fixed-size or indexed collection of elements
having the same type.
Example:
DECLARE numbers AS ARRAY[10] OF INTEGER
LIST OF <TYPE>
Ordered collection of elements.
Example:
DECLARE names AS LIST OF STRING
SET OF <TYPE>
Unordered collection containing unique elements.
Example:
DECLARE numbers AS SET OF INTEGER
MAP OF <KEY_TYPE, VALUE_TYPE>
Collection of key/value associations.
Example:
DECLARE ages AS MAP OF <STRING, INTEGER>
QUEUE OF <TYPE>
First-In-First-Out collection.
Example:
DECLARE jobs AS QUEUE OF STRING
STACK OF <TYPE>
Last-In-First-Out collection.
Example:
DECLARE values AS STACK OF INTEGER
RECORD / STRUCTURE
------------------
RECORD
Compound data type containing named fields.
Example:
TYPE Address = RECORD
name AS STRING
street AS STRING
city AS STRING
zipCode AS STRING
END RECORD
ENUMERATION
-----------
ENUM
Defines a finite set of named values.
Example:
TYPE Color = ENUM
RED,
GREEN,
BLUE
END ENUM
REFERENCE TYPES
---------------
REFERENCE TO <TYPE>
Reference to another value or object.
Example:
DECLARE customer AS REFERENCE TO Customer
POINTER TO <TYPE>
Explicit address/reference to another value.
Mainly useful when pseudocode describes
low-level algorithms.
Example:
DECLARE next AS POINTER TO Node
OPTIONAL TYPES
--------------
OPTIONAL <TYPE>
Value can either contain a value of TYPE
or contain no value.
Example:
DECLARE result AS OPTIONAL INTEGER
USER-DEFINED TYPES
------------------
TYPE <NAME> = <TYPE-DEFINITION>
Creates a new named data type.
Example:
TYPE CustomerID = INTEGER
OBJECT / CLASS TYPES
--------------------
CLASS
Structured data type containing state
and operations.
Example:
CLASS Customer
name AS STRING
address AS Address
END CLASS
FUNCTION TYPES
--------------
FUNCTION(<PARAMETER_TYPES>) RETURNS <TYPE>
Represents a callable function.
Example:
DECLARE compare AS
FUNCTION(INTEGER, INTEGER) RETURNS BOOLEAN
Generic Types
-------------
<TYPE>
Placeholder for another data type.
Example:
LIST OF <T>
ARRAY OF <T>
MAP OF <K, V>
Typical Variable Declaration
----------------------------
DECLARE <name> AS <type>
Examples:
DECLARE counter AS INTEGER
DECLARE price AS DECIMAL
DECLARE average AS REAL
DECLARE finished AS BOOLEAN
DECLARE letter AS CHARACTER
DECLARE name AS STRING
DECLARE values AS ARRAY[100] OF INTEGER
DECLARE names AS LIST OF STRING
Declaration with Initial Value
------------------------------
DECLARE <name> AS <type> ← <value>
Examples:
DECLARE counter AS INTEGER ← 0
DECLARE pi AS REAL ← 3.14159265
DECLARE finished AS BOOLEAN ← FALSE
DECLARE name AS STRING ← "John"
Constants
---------
CONSTANT <name> AS <type> ← <value>
Examples:
CONSTANT MAX_SIZE AS INTEGER ← 1000
CONSTANT PI AS REAL ← 3.14159265
Type Inference
--------------
DECLARE <name> ← <value>
The type is inferred from the initial value.
Examples:
DECLARE counter ← 0
DECLARE name ← "John"
DECLARE finished ← FALSE
Here is the link to Backus/Naur form (BNF) for the PSEUDOCODE:
The language definition is shown here to prove that PSEUDOCODE has all necessary language elements
The Backus/Naur(BNF) Form for pseudocode
The project derived from this BNF
Pseudo Code Language Interpreter
