The idea of functional programming
My coding / designing thoughts Part II - Functional Part
First steps - a long time ago
Step one - the introduction of the lambda calculus
The history of functional programming and design started in the 1930's (no joke). At that time, a mathematical Genius, Alonzo Church, introduced the theory of the lambda calculus. For short, it is:
Conceptualized computation using mathematical abstraction and variable binding.
At the time, it was not possible to realize anything from it, and I don't think he was aware of the influence his theory would have on modern computation and programming languages, or that a complete design and programming paradigm would be invented based on it.

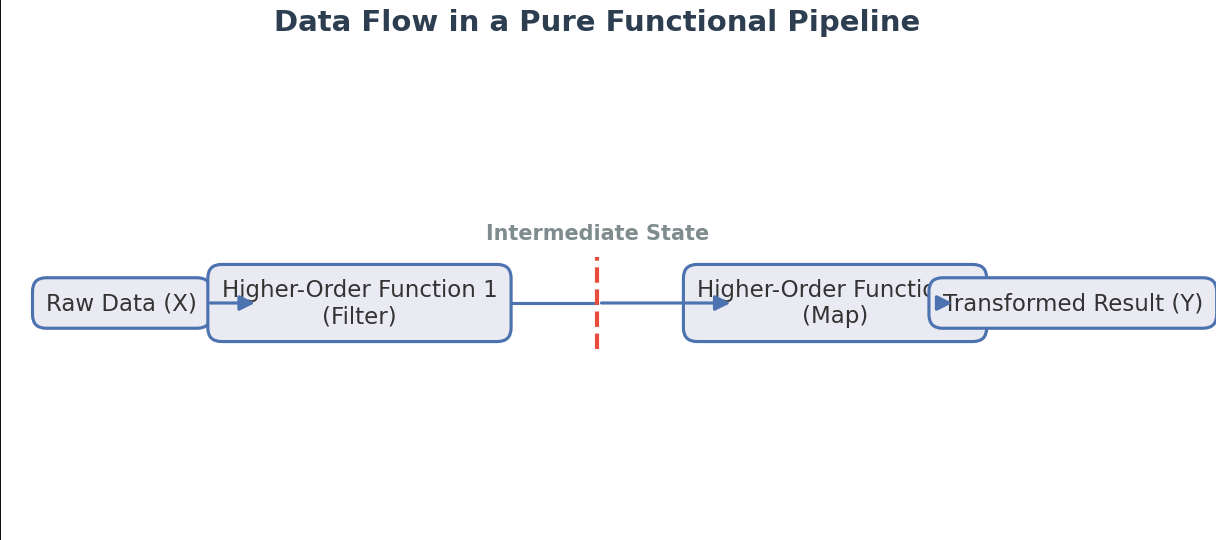

How data are processed in a functional way:
Pioneering (1950s–1960s) - The introduction of a new computing language (LISP)
John McCarthy had the idea to create a programming language out of this theory, so LISP was invented. LISP stands for LISt Processor or LISt processing. Here is a little code snippet of the first LISP version (the Fibonacci):
(label fib
(lambda (n)
(cond ((eq n 0) 0)
((eq n 1) 1)
(t (+ (fib (- n 1)) (fib (- n 2)))))))
and to be a bit more modern here, the same in the widespread version of LISP (Common LISP)
(defun fib (n)
(cond ((= n 0) 0)
((= n 1) 1)
(t (+ (fib (- n 1)) (fib (- n 2))))))
Now a function is shown to explain currying in code. Currying is done because, by definition, the functions contain that only one parameter per function is allowed. So the creators had to think about how to define a function with 1..n parameters. The solution was currying.
Key Syntax Concepts
- lambda: Returns an anonymous function that captures the value of x from its surrounding environment (a lexical closure).
- funcall: Required in Common Lisp to evaluate an anonymous function or a function stored inside a variable.
- setf: Binds the newly generated anonymous function to the variable add-ten.
;; Here is how the add function is defined without currying
(defun non-curried-add (x y)
(+ x y))
;; Define the curried function generator
(defun curried-add (x)
(lambda (y)
(+ x y)))
;; 1. Use it directly to add 5 and 10
(funcall (curried-add 5) 10) ; Returns 15
;; 2. Create a specialized "partial" function
(setf add-ten (curried-add 10))
;; 3. Call the specialized function later
(funcall add-ten 20) ; Returns 30
Here, the currying is shown by defining a simple add function with two parameters. In Common LISP and other functional languages like Scheme or Haskell, currying happens under the hood. To show two other languages here, the way of currying in Scheme and Clojure :
;; Define the curried function
(define ((curried-add x) y)
(+ x y))
;; 1. Use it directly
((curried-add 5) 10) ; Returns 15
;; 2. Create a partial function
(define add-ten (curried-add 10))
;; 3. Call it directly like a regular function
(add-ten 20) ; Returns 30
;; Take a normal multi-argument function
(defn add [x y] (+ x y))
;; Instantly create a partial function
(def add-ten (partial add 10))
(add-ten 20) ;; returns 30
Typing & Purity (1970s–1990s) - Introduce types and introduce purity
In the 1970s to 1990s, the idea was to introduce data types, that is, pure functional behavior, to functional languages. The leading languages here were ML (Meta Language) and Haskell. Here are two examples one in Haskell and one in ML (Meta Language) in our case SML => Standard ML :
-- Define a normal-looking function
add :: Int -> Int -> Int
add x y = x + y
-- 1. Use it directly (looks like a normal call, no commas or parentheses needed)
result = add 5 10 -- Returns 15
-- 2. Create a partial function just by leaving out the second argument
addTen = add 10
-- 3. Call it later
finalResult = addTen 20 -- Returns 30
(* 1. Define a curried add function *)
fun add x y = x + y
(* The compiler infers the type as: fn : int -> int -> int *)
(* 2. Use it directly *)
val result = add 5 10 (* Returns 15 *)
(* 3. Create a partial function by supplying only the first argument *)
val addTen = add 10 (* Returns a function of type: int -> int *)
(* 4. Call the partial function later *)
val finalResult = addTen 20 (* Returns 30 *)
Another high-impact idea is purity, which means a pure functional implementation of functionality like I/O (in the examples, standard I/O). Haskell implements a feature called Monads. Here is the monadic way of implementing standard I/O:
-- A pure function: No I/O allowed here. Given the same input, it always returns the same output.
greetPure :: String -> String
greetPure name = "Hello, " ++ name ++ "!"
-- A monadic I/O function: It returns an action of type 'IO ()'
main :: IO ()
main = do
putStrLn "What is your name?"
name <- getLine -- Extract the String out of the IO Monad
let greeting = greetPure name -- Call the pure function inside the impure block
putStrLn greeting -- Print the result
Other languages, e.g., ML, use the imperative approach directly. This results in a mixture of two paradigms for I/O; use this as an example. Here is an example:
(* A pure function *)
fun greetPure name = "Hello, " ^ name ^ "!"
(* An impure function that does I/O directly *)
fun main () =
let
val _ = print "What is your name?\n"
val name = valOf (TextIO.inputLine TextIO.stdIn) (* Directly reads from console *)
val cleanName = String.substring (name, 0, String.size name - 1) (* Remove trailing newline *)
val greeting = greetPure cleanName
in
print (greeting ^ "\n") (* Directly prints to console *)
end
But in languages like ML, Clojure and Scheme, you can define monads easily to get a pure functional implementation in the application itself. Here is an example in Clojure:
;; The abstract for that kind of logic
;; 1. The Monad Context Creator
;; An IO action is represented simply as a 0-argument function (a thunk)
(defn io-return [v]
(fn [] v))
;; 2. The Monad Binder
;; Sequences two IO actions together without executing them yet
(defn io-bind [io-action f]
(fn []
(let [pure-val (io-action)] ;; Run the first action to get the inner value
((f pure-val))))) ;; Pass it to function f, then run the resulting action
;; 3. The Runner (The Impure Entry Point)
;; Forces the execution of the entire monadic chain
(defn run-io [io-action]
(io-action))
Now a bit more practical
;; The implementation in the way of the abstract above
;; A monadic action that prints a string to the console
(defn io-print [s]
(fn []
(println s)
nil)) ;; Returns nil inside the monad context
;; A monadic action that reads a line from the console
(def io-read-line
(fn []
(read-line)))
These enhancements introduced new aspects of the functional paradigm and made it more usable in production, where types make it easier to ensure code robustness.
Modern (2000s–Present) - The adoption of the functional paradigm in mainstream languages
The functional paradigm is very useful. Especially if functions run in parallel. This is because the functional paradigm has no side effects. Functions take defined arguments and return freshly created values or aggregates rather than manipulating aggregates or values defined in the calling function, procedure, or method. Or globally defined values. Here are some examples of the functional paradigm integration in popular languages:
Example in Scala:
def makeMultiplier(x: Int): Int => Int = {
y => x * y
}
@main def run() = {
// Create a specialized function that doubles a number
val totalDoubler = makeMultiplier(2)
println(totalDoubler(5)) // Output: 10
}
Example in Java Version 8 or higher:
import java.util.function.Function;
public class Main {
public static Function<Integer, Integer> makeMultiplier(int x) {
// x is captured inside the lambda block below
return (y) -> x * y;
}
public static void main(String[] args) {
// Create a specialized function that doubles a number
Function<Integer, Integer> totalDoubler = makeMultiplier(2);
System.out.println(totalDoubler.apply(5)); // Output: 10
}
}
Example in Clojure:
(defn make-multiplier [x]
(fn [y] (* x y)))
;; Create a specialized function that doubles a number
(def total-doubler (make-multiplier 2))
(println (total-doubler 5)) ; Output: 10
const makeMultiplier = (x) => {
return (y) => x * y;
};
// Create a specialized function that doubles a number
const totalDoubler = makeMultiplier(2);
console.log(totalDoubler(5)); // Output: 10
Example in Kotlin:
fun makeMultiplier(x: Int): (Int) -> Int {
return { y -> x * y }
}
fun main() {
// Create a specialized function that doubles a number
val totalDoubler = makeMultiplier(2)
println(totalDoubler(5)) // Output: 10
}
Example in Python:
def make_multiplier(x):
def multiplier(y):
return x * y
return multiplier
# Create a specialized function that doubles a number
total_doubler = make_multiplier(2)
print(total_doubler(5)) # Output: 10
Example in Rust
// impl Fn(i32) -> i32 means "returns something that implements this function signature"
fn make_multiplier(x: i32) -> impl Fn(i32) -> i32 {
// The "move" keyword forces the closure to take ownership of 'x'
move |y| x * y
}
fn main() {
// Create a specialized function that doubles a number
let total_doubler = make_multiplier(2);
println!("{}", total_doubler(5)); // Output: 10
}
Example in C++ -> V11 or higher
#include <iostream>
#include <functional>
// std::function<int(int)> defines a function taking an int and returning an int
std::function<int(int)> makeMultiplier(int x) {
// [x] copies 'x' into the lambda's internal storage
return [x](int y) {
return x * y;
};
}
int main() {
// Create a specialized function that doubles a number
auto totalDoubler = makeMultiplier(2);
std::cout << totalDoubler(5) << std::endl; // Output: 10
return 0;
}
The takeaway is that the functional paradigm is very old, like the multi-threading idea. The problem was how to implement the paradigm with limited memory and non-parallel processors with only one core and a low instruction-per-second rate.
Now let's look under the hood
One great step in the history was the introduction of the SECD machine by Peter Landin.
The history and abstract of the SECD ( S tack E nvironment C ode / C ontrol D ump) machine
Peter Landin was the crucial bridge between abstract mathematics and practical computer science. While Alonzo Church invented lambda calculus as a logic tool and John McCarthy used it loosely to inspire LISP, Landin was the first to realize that lambda calculus could model and decode real-world programming languages. In the 1960s, Landin introduced several revolutionary concepts that laid the groundwork for modern functional compiler design:
1964 - Landin invented the SECD Machine
- It was the world's first abstract machine (virtual machine) specifically designed to run functional code.
- Instead of mapping functions to mechanical computer hardware, compilers could target this virtual machine.
- It mathematically proved how to handle things like nested variables and environments safely.
1965 - Landin invented the ISWIM and the "Off-Side Rule"
- It was arguably the first language to align perfectly with the core ethos of modern functional programming.
- He introduced the Off-Side Rule, which uses indentation and whitespace to define code blocks.
- If you have ever written Python, Haskell, or F#, you are using Landin's whitespace logic.
Coining "Syntactic Sugar"
Landin coined the phrase "syntactic sugar". He used it to describe user-friendly features in a language's syntax that do not change what the code can do, but make it much easier for humans to read and write. He showed that many complex programming language commands were just "sugar" built on top of basic lambda calculus.
Inventing the "Closure"
When figuring out how to make higher-order functions work on physical computers, Landin realized that a function passed around as data needs to remember the variables that surrounded it when it was born. He invented the concept of a closure (a function bundled with references to its surrounding state). Today, closures are vital components of JavaScript, Swift, and Rust, as well as other languages that use the functional paradigm, like Java, Python, LISP, and many others.
Now let us look under the hood of a SECD machine
A SECD machine is a pure functional machine which can be easily defined in a few steps:
The components of the SECD
S = Stack
parameters, temporary values, results
E = Environment
known parameters + locale variables
C = Code
functions/instructions to be executed
D = Dump
previous environment generations/call frames
The abstract of the control flow
Caller environment
│
▼
CALL f(x)
│
├── x push to stack
├── generate a new environment generation
├── pop x from stack → environment
├── store the prior environment → dump
│
▼
Function environment
│
├── local variables
├── recursive calls are possible
│
▼
RETURN
│
├── return value → stack
├── remove actual environment
└── restore the last environment from dump
And now the abstract of the runtime
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
/* ============================================================
* Types
* ============================================================ */
typedef enum {
TYPE_VOID = 0,
TYPE_INTEGER,
TYPE_FLOAT,
TYPE_DOUBLE,
TYPE_STRING,
TYPE_FUNCTION
} Type;
struct Function;
typedef struct Value {
Type type;
union {
long integer_value;
float float_value;
double double_value;
char *string_value;
struct Function *function_value;
} data;
} Value;
/* ============================================================
* VALUE STACK
* ============================================================ */
typedef struct StackEntry {
Value value;
struct StackEntry *next;
} StackEntry;
typedef struct {
StackEntry *top;
size_t size;
} Stack;
static void stack_init(Stack *stack)
{
stack->top = NULL;
stack->size = 0;
}
static int stack_push(
Stack *stack,
Value value
)
{
StackEntry *entry =
malloc(sizeof(StackEntry));
if (entry == NULL)
return 0;
entry->value = value;
entry->next = stack->top;
stack->top = entry;
stack->size++;
return 1;
}
static int stack_pop(
Stack *stack,
Value *value
)
{
if (stack == NULL ||
stack->top == NULL)
return 0;
StackEntry *entry =
stack->top;
stack->top =
entry->next;
stack->size--;
if (value != NULL)
*value = entry->value;
free(entry);
return 1;
}
/* ============================================================
* ENVIRONMENT
* ============================================================ */
typedef struct EnvironmentEntry {
char *identifier;
Value value;
struct EnvironmentEntry *next;
} EnvironmentEntry;
typedef struct Environment {
EnvironmentEntry *variables;
/*
* Lexical outer scope.
*
* Wichtig für Closures / Currying.
*/
struct Environment *parent;
/*
* Generation des Runtime-Environments.
*/
size_t generation;
} Environment;
static Environment *environment_create(
Environment *parent,
size_t generation
)
{
Environment *environment =
malloc(sizeof(Environment));
if (environment == NULL)
return NULL;
environment->variables = NULL;
environment->parent = parent;
environment->generation = generation;
return environment;
}
static int environment_define(
Environment *environment,
const char *identifier,
Value value
)
{
if (environment == NULL ||
identifier == NULL)
return 0;
EnvironmentEntry *entry =
malloc(sizeof(EnvironmentEntry));
if (entry == NULL)
return 0;
entry->identifier =
malloc(strlen(identifier) + 1);
if (entry->identifier == NULL) {
free(entry);
return 0;
}
strcpy(
entry->identifier,
identifier
);
entry->value = value;
entry->next =
environment->variables;
environment->variables =
entry;
return 1;
}
static Value *environment_lookup(
Environment *environment,
const char *identifier
)
{
while (environment != NULL) {
EnvironmentEntry *entry =
environment->variables;
while (entry != NULL) {
if (strcmp(
entry->identifier,
identifier
) == 0)
return &entry->value;
entry = entry->next;
}
environment =
environment->parent;
}
return NULL;
}
static int environment_assign(
Environment *environment,
const char *identifier,
Value value
)
{
while (environment != NULL) {
EnvironmentEntry *entry =
environment->variables;
while (entry != NULL) {
if (strcmp(
entry->identifier,
identifier
) == 0) {
entry->value = value;
return 1;
}
entry = entry->next;
}
environment =
environment->parent;
}
return 0;
}
static void environment_free(
Environment *environment
)
{
if (environment == NULL)
return;
EnvironmentEntry *entry =
environment->variables;
while (entry != NULL) {
EnvironmentEntry *next =
entry->next;
free(entry->identifier);
free(entry);
entry = next;
}
free(environment);
}
Now the dump is defined. Here we make an important change to the original SECD model: The dump explicitly stores the full runtime-call-context.
/* ============================================================
* DUMP / CALL FRAMES
* ============================================================ */
typedef struct DumpFrame {
/*
* Environment of the callers.
*/
Environment *environment;
/*
* Stack-state of the callers.
*
* we use one runtime-stack;
* stack_base tells us the call depth.
*/
size_t stack_base;
struct DumpFrame *next;
} DumpFrame;
typedef struct {
DumpFrame *top;
size_t depth;
} Dump;
static void dump_init(Dump *dump)
{
dump->top = NULL;
dump->depth = 0;
}
static int dump_push(
Dump *dump,
Environment *environment,
size_t stack_base
)
{
DumpFrame *frame =
malloc(sizeof(DumpFrame));
if (frame == NULL)
return 0;
frame->environment =
environment;
frame->stack_base =
stack_base;
frame->next =
dump->top;
dump->top =
frame;
dump->depth++;
return 1;
}
static int dump_pop(
Dump *dump,
Environment **environment,
size_t *stack_base
)
{
if (dump == NULL ||
dump->top == NULL)
return 0;
DumpFrame *frame =
dump->top;
dump->top =
frame->next;
dump->depth--;
if (environment != NULL)
*environment =
frame->environment;
if (stack_base != NULL)
*stack_base =
frame->stack_base;
free(frame);
return 1;
}
Function modeling. A function has only one parameter at all times. If there are more parameters, it is realized by currying
typedef int (*FunctionBody)(
Runtime *runtime
);
typedef struct Function {
char *parameter_name;
Type parameter_type;
Type return_type;
/*
* Lexikalisches Environment für Closures.
*/
Environment *closure_environment;
FunctionBody body;
} Function;
FunctionBody: The function resolves the parameter during runtime. The FunctionBody holds only the function and function signature description:
Stack
↓
CALL
↓
Environment
↓
Function Body
The lookup of a reference in the environment. If the reference is not found in the actual generation, the lookup looks in the older generation; if not found, the lookup searches up to the top-level environment (root)
Value *x =
environment_lookup(
runtime->environment,
"x"
);
And now the code for a function call takes place
static int runtime_call(
Runtime *runtime,
Function *function
)
{
if (runtime == NULL ||
function == NULL)
return 0;
/*
* ========================================================
* 1. Argument liegt auf S
* ========================================================
*/
Value argument;
if (!stack_pop(
&runtime->stack,
&argument
))
return 0;
if (argument.type !=
function->parameter_type)
return 0;
/*
* ========================================================
* 2. Caller auf D sichern
* ========================================================
*/
if (!dump_push(
&runtime->dump,
runtime->environment,
runtime->stack.size
))
return 0;
/*
* ========================================================
* 3. Neue Generation
* ========================================================
*/
runtime->generation++;
Environment *new_environment =
environment_create(
function->closure_environment,
runtime->generation
);
if (new_environment == NULL)
return 0;
runtime->environment =
new_environment;
/*
* ========================================================
* 4. Parameter S -> E
* ========================================================
*/
if (!environment_define(
runtime->environment,
function->parameter_name,
argument
))
return 0;
/*
* ========================================================
* 5. Function Body ausführen
* ========================================================
*/
if (!function->body(runtime))
return 0;
/*
* Convention:
*
* Nach Ende des Bodies liegt exakt der
* Return-Wert oben auf dem Stack.
*/
Value return_value;
if (!stack_pop(
&runtime->stack,
&return_value
))
return 0;
/*
* ========================================================
* 6. Function Environment verwerfen
* ========================================================
*/
Environment *dead_environment =
runtime->environment;
/*
* ========================================================
* 7. Caller aus Dump restaurieren
* ========================================================
*/
Environment *caller_environment;
size_t caller_stack_base;
if (!dump_pop(
&runtime->dump,
&caller_environment,
&caller_stack_base
))
return 0;
runtime->environment =
caller_environment;
runtime->generation--;
environment_free(
dead_environment
);
/*
* ========================================================
* 8. Return-Wert auf Caller-Stack
* ========================================================
*/
stack_push(
&runtime->stack,
return_value
);
return 1;
}
Here is a plain text visualization of the code above
CALL
Stack:
parameter
│
▼
POP
│
▼
Environment Generation N+1
parameter = value
locals...
│
▼
function body
│
▼
result
│
▼
Stack
│
▼
Generation N+1 löschen
│
▼
Generation N restaurieren
│
▼
Caller Stack:
resulttext
So now we have a skeleton of a SECD logic. This logic can explain how higher-order functions are implemented and how they work. This explains the essential idea of modern functional programming.
For a long time, this functional paradigm was underestimated as too theoretical. The mainstream was, for a long time, the imperative paradigm, and later the object-oriented paradigm. But in recent years, software has become too complex to manage without the functional paradigm, so many languages like Python and Java have adopted higher-order lambda functions to express complex algorithms much more compactly.

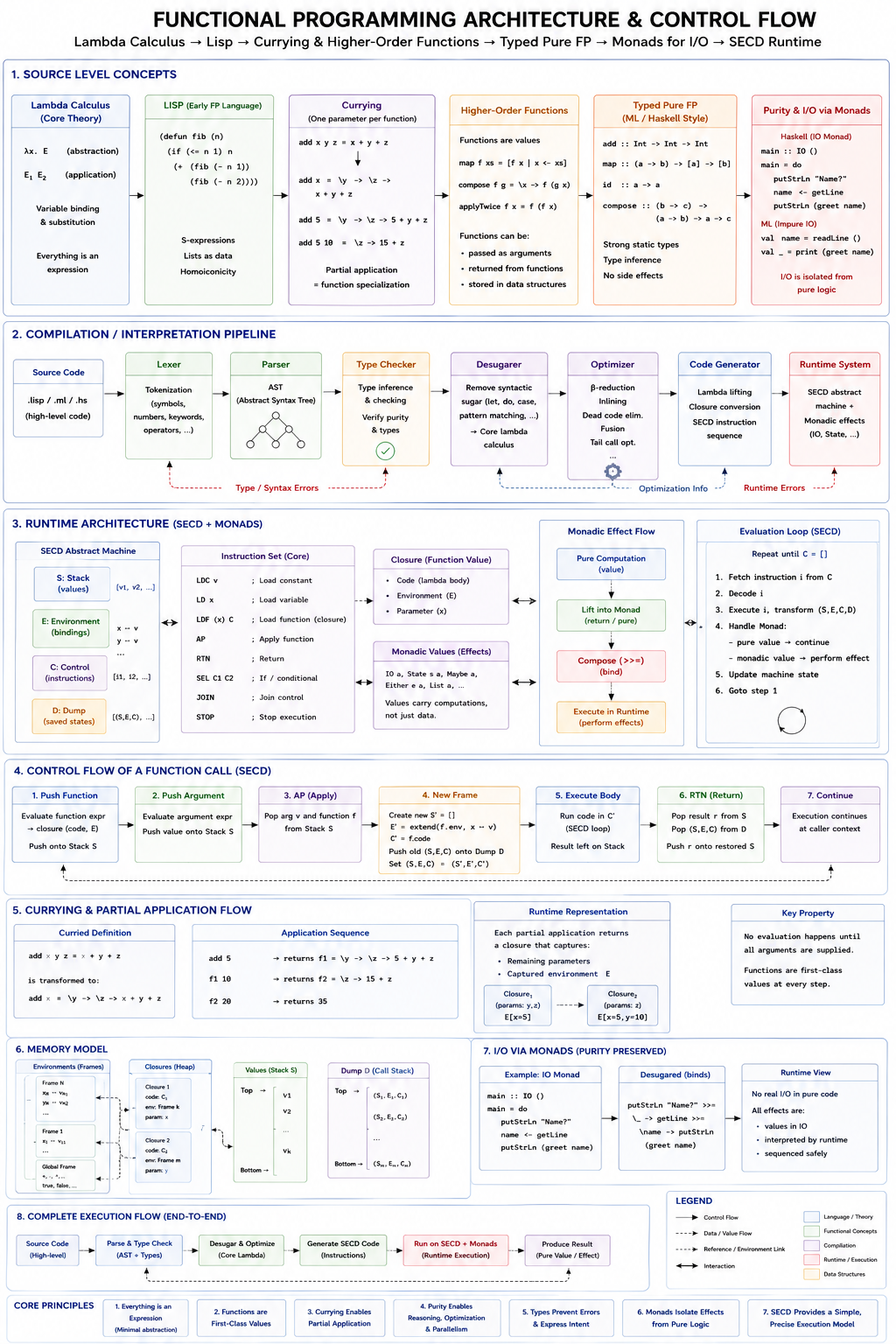

Here the whole thing again as concept
-
Harald Glab-Plhak
-
Computer Science since 1992
-
© Harald Glab-Plhak (2026)
